Bypass Capacitor: How It Works, Where to Place It, and How to Choose the Right Value

2026-09-07 02:40:16

A bypass capacitor is a fundamental PCB component used to provide a low-impedance path for high-frequency noise and transient current, helping maintain a stable power supply close to an IC or active device. Effective bypassing depends not only on capacitance but also on ESR, ESL, capacitor type, operating frequency, PCB layout, and placement . For engineers designing reliable PCB assemblies, the most important principle is simple: the capacitor should be placed as close as practical to the device's power and ground pins, with the smallest possible current loop . This article explains bypass capacitor operation, selection, placement, common mistakes, and how PCB manufacturing and layout decisions affect its real-world performance.

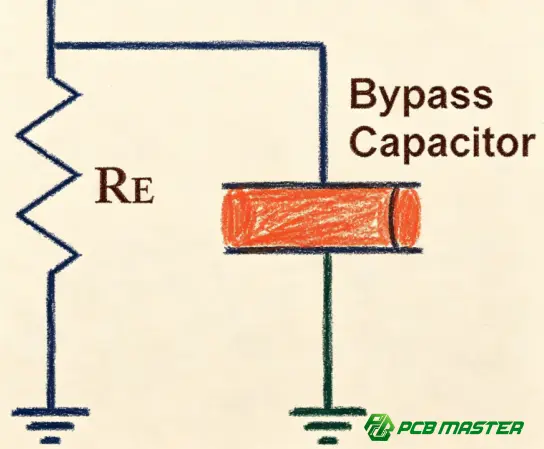

Bypass capacitors schematic showing power supply decoupling and high-frequency noise filtering on a PCB

What Is a Bypass Capacitor?

A bypass capacitor is a capacitor connected between a power-supply rail and ground, typically near an IC, microcontroller, processor, amplifier, sensor, or other active circuit.

Its primary function is to provide a local source of transient current and suppress high-frequency voltage fluctuations on the power rail.

When an IC switches rapidly, its instantaneous current demand can change much faster than the main power supply or voltage regulator can respond. Without local decoupling, the resulting current flowing through PCB power traces, vias, connectors, and other parasitic elements can produce voltage fluctuations and noise.

A bypass capacitor helps by temporarily supplying current locally:

Power rail → Bypass capacitor → IC → Ground

Rather than requiring the transient current to travel through a relatively long power-distribution path, the capacitor provides a short local current loop.

This is why bypass capacitors are commonly positioned directly beside an IC's power pins.

Bypass Capacitor vs. Decoupling Capacitor

The terms bypass capacitor and decoupling capacitor are frequently used interchangeably, although engineers may emphasize slightly different functions.

Term	Primary purpose	Typical application
Bypass capacitor	Provides a low-impedance path for AC/high-frequency noise and transient current	IC power pins
Decoupling capacitor	Isolates local circuits from fluctuations on the power distribution network	ICs, processors, analog circuits
Bulk capacitor	Supplies relatively slower/larger transient current and stabilizes the power rail	Power-entry and regulator areas

A practical PCB design may use all three.

For example, a board could have:

Voltage regulator → Bulk capacitor → Power distribution → Local bypass capacitors → ICs

The capacitor values and physical locations are selected according to the frequency range and transient-current requirements.

How Does a Bypass Capacitor Work?

The behavior of a capacitor can be approximated by:

X _C =1/(2πfC)

where:

XC = capacitive reactance
f = frequency
C = capacitance

As frequency increases, capacitive reactance decreases.

Therefore, a capacitor can provide an increasingly low-impedance path for higher-frequency components of a signal or noise.

For example, when a digital IC switches states, its current waveform contains high-frequency components. The bypass capacitor can supply part of the instantaneous current and reduce the voltage disturbance seen at the IC's supply pins.

However, a real capacitor is not an ideal capacitor.

Its effective impedance is influenced by:

Capacitance
ESR (Equivalent Series Resistance)
ESL (Equivalent Series Inductance)
Package size
Mounting geometry
PCB trace length
Via inductance
Operating frequency

This is why simply increasing capacitance does not necessarily produce better high-frequency bypassing.

The Importance of ESL

At sufficiently high frequencies, the capacitor's parasitic inductance becomes significant.

A simplified impedance model is:

Z≈ESR+j[2πfL−1/(2πfC)]

At lower frequencies, the capacitive component dominates.

At higher frequencies, the inductive component associated with ESL can dominate.

Consequently, a capacitor can behave less like an ideal capacitor and more like an inductor as frequency increases.

This leads to one of the most important PCB layout principles:

A good bypass capacitor is not simply the correct capacitance; it is the correct capacitance connected with the lowest practical parasitic inductance.

Why Bypass Capacitor Placement Matters

Bypass capacitor placement is often more important than engineers initially expect.

Consider two layouts:

Layout A

IC power pin → 20 mm trace → capacitor → ground

Layout B

IC power pin → capacitor → ground

Although both circuits may use exactly the same capacitor, their high-frequency performance can be substantially different.

The longer current path introduces additional parasitic inductance.

During a fast transient:

V=L(di/dt)

When di/dt is large, even relatively small parasitic inductance can create measurable voltage disturbances.

Best-Practice Placement

For a typical digital IC:

Place the bypass capacitor as close as practical to the power pin.
Keep the power connection short.
Keep the ground connection short.
Minimize the loop area between the IC, capacitor, power plane, and ground plane.
Use an appropriate package size when high-frequency performance is important.
Avoid routing the capacitor through unnecessary long traces or narrow neck-downs.
Use appropriate ground vias when the PCB stack-up requires them.

The goal is to minimize the parasitic inductance of the entire current loop.

How to Choose a Bypass Capacitor

Selecting a bypass capacitor requires more than choosing a capacitance value.

Engineers should evaluate at least these parameters:

Parameter	Why it matters
Capacitance	Determines the capacitor's energy-storage and impedance characteristics
Voltage rating	Must provide adequate margin above the actual operating voltage
Dielectric	Influences capacitance stability, losses, and DC-bias behavior
Package size	Smaller packages can offer lower parasitic inductance
ESR	Affects impedance and transient response
ESL	Becomes increasingly important at high frequencies
Temperature rating	Determines performance across operating temperature
DC-bias characteristics	Particularly important for ceramic capacitors
Self-resonant frequency	Determines where capacitive behavior transitions toward inductive behavior

Ceramic Capacitors

Multilayer ceramic capacitors (MLCCs) are widely used for local bypassing because they can provide relatively low impedance and are available in compact packages.

Common dielectric classes include:

C0G/NP0
X7R
X5R
Other application-dependent ceramic dielectrics

For many digital power rails, engineers commonly use ceramic capacitors because of their compact size and high-frequency characteristics.

However, MLCC capacitance can decrease under DC bias, particularly with some high-capacitance ceramic components.

Therefore, the nominal capacitance printed on the datasheet should not automatically be treated as the effective capacitance under operating conditions .

Should You Use One Capacitor or Multiple Capacitors?

A PCB does not necessarily need one bypass capacitor value for every frequency.

A practical power-distribution network may combine capacitors with different capacitance values and physical characteristics.

For example:

Small ceramic capacitors for local high-frequency bypassing
Medium-value capacitors for intermediate-frequency transients
Larger bulk capacitors for lower-frequency load changes

The objective is to maintain acceptable power-distribution impedance across the frequency range relevant to the circuit.

However, simply adding many different capacitor values is not automatically an optimized design.

Each additional capacitor also introduces:

PCB area requirements
Component cost
Parasitic inductance
Potential anti-resonance behavior
Assembly considerations

The capacitor network should therefore be designed according to the actual power integrity requirements rather than by blindly following a generic capacitor-value recipe.

Common Bypass Capacitor Design Mistakes

1. Choosing the Capacitor Value Without Considering Frequency

A common mistake is to select a capacitor purely according to capacitance.

A 0.1 µF capacitor and a 10 µF capacitor do not provide identical impedance characteristics across all frequencies.

Capacitance alone does not define high-frequency performance.

Engineers should examine the capacitor's impedance-versus-frequency characteristics and consider the operating environment of the circuit.

2. Placing the Capacitor Too Far From the IC

A bypass capacitor located several centimeters away may provide some power filtering, but it may be much less effective for suppressing very fast transients at the IC power pins.

For high-speed digital devices, physical proximity is part of the electrical design .

3. Using Long Traces

Long traces increase parasitic inductance.

Even when the capacitor itself has excellent high-frequency characteristics, poor PCB routing can compromise its effectiveness.

4. Ignoring the Ground Connection

Engineers sometimes focus heavily on the connection from the capacitor to the power pin while overlooking the return path.

The complete current loop matters.

A poor ground connection can increase loop inductance and reduce the effectiveness of the bypass network.

5. Ignoring DC-Bias Effects

For certain MLCCs, the effective capacitance under the applied DC voltage can be substantially lower than the nominal value.

Designers should therefore check the manufacturer's DC-bias curves when capacitance stability is important.

Bypass Capacitors and PCB Stack-Up Design

Bypass capacitor performance is also influenced by PCB stack-up.

A multilayer PCB with closely spaced power and ground planes can provide a lower-inductance power-distribution structure than a board where power and ground are physically far apart.

For high-speed systems, stack-up decisions can influence:

Power integrity
Signal integrity
Return-current paths
Plane impedance
EMI performance
Via inductance

A bypass capacitor should therefore not be treated as an isolated component.

It is part of the complete power distribution network (PDN) .

Bypass Capacitor Design for High-Speed PCBs

High-speed digital systems place greater demands on power integrity.

Processors, FPGAs, high-speed memory, networking devices, and communication electronics can generate rapid current transients. As switching speeds increase, the frequency content of those transients also becomes more significant.

A robust design process should consider:

Power Distribution Network Impedance

The PDN should maintain sufficiently low impedance over the relevant frequency range.

Capacitor Placement

The capacitor should be positioned to minimize the inductance between the device and capacitor.

Via Design

Vias introduce parasitic inductance. Excessively long or poorly positioned vias can increase the effective impedance of the bypass path.

Plane Configuration

Power and ground plane geometry affects the return-current path and overall PDN behavior.

Simulation and Measurement

For demanding high-speed designs, engineers may use:

PDN impedance analysis
SPICE-based modeling
Power-integrity simulation
VNA measurements
Oscilloscope measurements
Near-field EMI analysis

The appropriate verification method depends on the system's performance requirements.

Practical Bypass Capacitor Design Checklist

Before releasing a PCB design for manufacturing, review the following:

Design Item	Recommended Engineering Check
Capacitor value	Verify against IC and PDN requirements
Voltage rating	Confirm sufficient operating margin
Dielectric	Check temperature and DC-bias characteristics
Placement	Keep capacitor close to the relevant power pin
Ground path	Minimize return-path inductance
Trace length	Keep high-frequency current paths short
Package	Consider parasitic inductance
PCB stack-up	Verify power/ground configuration
Via arrangement	Minimize unnecessary via inductance
Multiple capacitors	Check impedance and possible resonance effects
Manufacturing	Confirm component/package compatibility
Testing	Validate supply ripple and transient response where required

PCB Manufacturing Considerations for Bypass Capacitors

A theoretically optimized bypass-capacitor layout still needs to be manufacturable.

During PCB fabrication and PCBA assembly, engineers should consider:

Component footprint accuracy
Solder-pad geometry
Component spacing
Via-to-pad clearance
Copper features
Assembly tolerances
Solder-mask requirements
Reflow process compatibility
AOI inspection accessibility

This is particularly important when the PCB contains a high component density or advanced structures such as HDI and microvias .

For production designs, DFM review should identify potential manufacturing issues before fabrication begins.

A useful engineering workflow is:

Schematic design → PDN analysis → PCB layout → DFM review → PCB fabrication → SMT assembly → Testing → Production validation

As a PCB and PCBA manufacturer serving applications across electronics, automotive, industrial control, communications, and other sectors, PCBMASTER supports the manufacturing requirements that surround power-integrity-sensitive PCB designs.

Its engineering service includes free engineering file checking , allowing PCB designs to be reviewed for manufacturability, PCB performance considerations, and cost-effectiveness before production.

For projects involving complex power-distribution structures, PCBMASTER provides access to more than 50 engineers and offers 24-hour online technical support. Its manufacturing capabilities include HDI PCBs with buried/blind vias, high-frequency PCBs , rigid-flex PCBs , FPCs , metal-core PCBs , and conventional multilayer boards .

This range is relevant because bypass-capacitor implementation is not independent of the PCB technology. Layer count, via structure, material selection, component density, and power/ground configuration all influence the practical implementation of a decoupling network.

Manufacturing and Quality Considerations

PCBMASTER states that its products are manufactured under ISO 9001 and IATF 16949 quality management systems , with UL certification and RoHS compliance. The company also states that boards undergo testing before shipment.

For automotive electronics and other reliability-sensitive applications, these manufacturing controls can be important when PCB layout incorporates dense component placement, complex interconnect structures, and demanding electrical requirements.

A Practical Example: Bypassing a Digital IC

Consider a digital IC connected to a regulated power rail.

When the IC switches, its instantaneous current demand changes rapidly.

Without an appropriately designed local bypass network:

Regulator → long PCB path → IC

The path's parasitic resistance and inductance can contribute to voltage fluctuations.

With local bypassing:

Regulator → PDN → local capacitor → IC

The capacitor supplies transient current locally, reducing the distance that the highest-frequency current components need to travel.

The effectiveness of this arrangement depends on the complete layout—not merely the capacitor's nominal value.

For a production PCB, the engineering team should therefore evaluate the capacitor, footprint, placement, power plane, ground plane, vias, trace geometry, and IC requirements as one system .

Key Takeaways

A bypass capacitor is a small component with a significant influence on PCB power integrity.

The most important principles are:

Place the bypass capacitor close to the IC power pin.
Minimize the power-to-ground current-loop area.
Do not select capacitors based on capacitance alone.
Consider ESR, ESL, self-resonance, and DC-bias effects.
Use appropriate capacitor networks for different frequency ranges when required.
Treat PCB stack-up and via design as part of the bypass strategy.
Verify the design through simulation or measurement when power-integrity requirements are demanding.
Perform DFM checks before manufacturing.

Ultimately, effective bypassing is a system-level PCB design problem . The capacitor, PCB layout, power distribution network, stack-up, and manufacturing process must work together to provide a low-impedance path for transient current.

As PCB technology moves toward higher switching speeds, greater component density, HDI structures, and increasingly demanding power-integrity requirements, good bypass-capacitor design becomes an essential part of reliable PCB engineering rather than a simple matter of placing a 0.1 µF capacitor next to every IC.

About the Author

Carol Luo

PCB Design Engineer

I'm Carol, a PCB Engineer at PCBMASTER with experience in PCB design and manufacturing engineering since 2018. I focus on translating engineering requirements into reliable PCB solutions, with expertise in stack-up design, material selection, and design-for-manufacturing (DFM). I share practical engineering insights from real-world PCB design and production experience.

Visit Carol Luo's Profile
