Why choose PCBMASTER?
6 Advantages.
High-quality assurance
PCBMASTER is 100% responsible for the quality of its products. Fully compliant with ISO 9001/ IATF 16949 quality management system and UL certified. All boards are fully tested before shipment.
24H Online Service
Professional engineers one-on-one full service, from design to finished product delivery and after-sales, to provide you with a full range of one-stop technical support and solutions, to ensure the smooth progress of the project, the whole process is worry-free.
Free document checking
All of your orders will receive a free engineering file review service from our professional technicians. Ensure its manufacturability, PCB performance and cost-effectiveness, timely point out potential problems and provide optimization suggestions to help you optimize the design, reduce costs, shorten production cycle time, and ensure that the project advances efficiently.
Never inflate costs
Efficient and convenient instant online quotation system. PCBMASTER price structure at a glance, transparent and clear, never add any hidden costs, you will know where your cost is spent.
On-time delivery
We ensure your peace of mind with a 99% on-time delivery rate, guaranteeing that your products arrive on time or even ahead of schedule. Whether via DHL or other courier services, our flexible logistics solutions help you easily balance speed and budget, giving you more freedom in your choices.
Flexible Payment Methods
We provide payment options for order fees, including PayPal, credit cards, and bank transfers. While ensuring maximum flexibility, we also guarantee the security of your payments and the quality of our products.
We own 6 self-owned one-stop factories for PCB manufacturing & PCB assembly.
We have 6 self-owned one-stop factories with highly automated PCB & PCBA production lines running 24hours/7days, offering comprehensive and diversified PCB/PCBA products, strong order processing capability, and extreme cost control to fully meet customer needs.
Professional engineering and service team, strict delivery process, guaranteed quality.
We have an engineering and service team with an average of over 15 years of experience in PCB R&D and manufacturing, supported by professional engineers providing full-process tracking services. From customer demand communication and solution design, to technical guidance and problem-solving during production, to post-delivery after-sales technical support, we offer customers comprehensive one-stop solutions.
Comprehensive & Diversified PCB Manufacturing Capabilities
PCBMASTER is deeply cultivated in the PCB industry and has cumulatively served tens of thousands of enterprises around the world, covering a wide range of fields such as consumer electronics, communication equipment, industrial control, automotive electronics, medical equipment. We have accumulated rich experience in product application and customer service.
1-4L quick ture PCB Prototype
50,000 items/M
High Frequency PCB
30,000 ㎡/M
Rigid-Flex PCB
100,000 ㎡/M
HDI (Buried/blind vias) PCB
50,000 ㎡/M
FPC (Flexible Printed Circuit)
6,000-10,000 ㎡/M
Metal core PCB
20,000 ㎡/M
5.After strict screening, PCB boards are all sourced from world-renowned manufacturers such as SY-TECH, Panasonic, ROGERS, VENTEC, BERGQUIST, Laird, Taconic, Isola, Nelco, ARLON, ITEQ, etc. We stock 1200 specifications of PCB boards, covering FR-4, high-frequency & high-speed, aluminum-based, ceramic-based types and more.
Products type | Materials type | Min track/spacing | Process capability |
|---|---|---|---|
| FR4 | TG140/150/170 / Halogen-free FR-4 | 2.0/2.0mil | ≦64Layers / HDI Any-Layers |
| FPC | FPC / HDI FPC / Transparent FPC | 2.0/2.0mil | ≦20Layers / HDI 1-3 Layers |
| Rigid-Flex Board | Impedance-controlled / Tab-routed / Hollowed Rigid-Flex PCB | 2.0/2.0mil | ≦30Layers / HDI: 1-3 Layers |
| High-frequency PCB/RF PCB | ROGERS、AGC、SY、Wangling、Zhongying 、 | 3.0/3.0mil | ≦24Layers/DK2.2-30 |
| High-speed PCB | TUC、EMC、SY、ITEQ、ISOLA、Panasonic、AGC | 2.0/2.0mil | ≦36Layers/Impedance/Blind/Buried Vias/Hybrid Press/Depth-Controlled Blind Slot/Pad-on-Via Filled/N+N Lamination/Backdrilling |
| Ceramic core PCB | Alumina(AI203)、Aluminum nitride(AIN)、Silicon nitride(Si3N4)、Sapphire base | 2.0/2.0mil | 1-4Layers / DPC、DBC、LTCC |
| Metal core PCB | Aluminum/Copper/Iron core、High Thermal Conductivity Metal core/Ultra-Thermally Conductive Metal core/Sandwich Metal core/Hybrid-Pressed Metal core(SY/Boyu/Qingxi/Bergquist/DENKA) | 3.0/3.0mil | 1-8Layers / Thermal conductivity 1-385W/m·K |
| Mini LED PCB | miniLED PCB(P＞1.2) 、Transparent screen miniLED light board、Small-pitch LED light board | 2.0/2.0mil | >=P1.20/HDI: 1-4Layers |
| IC substrate PCB | Process technology: MSAP、ETS、SAP、ABF | 1.0/1.0mil | 2-12 Layers/HDI Any-layers/ Thickness: 0.10-1.20mm/ Min mechanical drill: 0.10mm/Min laser drill 0.05mm |
| Special PCB | Hybrid-Pressed PCB、Stepped PCB、Semiconductor Test Board、Transparent Substrate | 3.0/3.0mil | High-Frequency High-Speed Hybrid Lamination/Metal Core Hybrid Lamination/Various Stepped PCBs/High-Frequency Transparent Materials |
Daily production capacity
PCB assembly SMT：12 million points per day
PCB assembly DIP： 500000 points per day
PCB assembly size
PCB single size ＜45mm×45mm.The PCB need combo
Max size：400mm×1200mm
PCB assembly service type

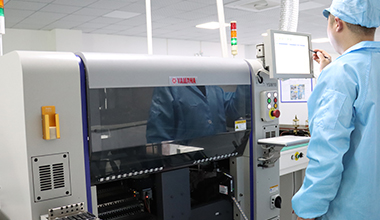

SMT: Surface Mount Technology

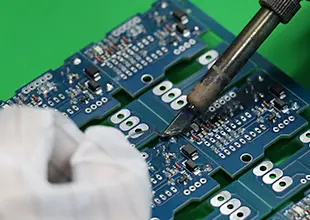

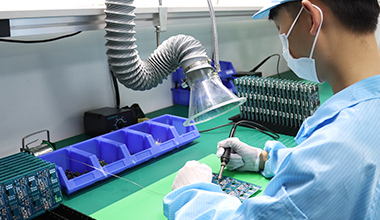

DIP：Through-Hole Technology
Supported PCB types
Rigid PCB（FR-4/Ceramic/High-frequency/high-speed PCB）
FPC（Flexible Printed Circuit）/ Rigid-Flex PCB
Metal Base/Metal core
Min component spacing
Conventional min size：0.3mm
Limit min size：0.2mm
Min Components footprint
Conventional footprint 0201
Limit footprint 01005

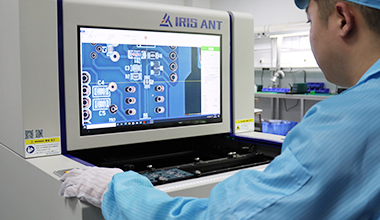

AOI inspection capability
Conventional min CHIP size： 0201
Conventional min IC pitch：0.3mm
Limit min CHIP size: 01005
Limit min IC pitch：0.3mm
X-RAY inspection capability
PCB Assembly solder joint inspection
Components inspection (BGA, CSP, POP, etc.)
Workshop Level
Workshop dust-free grade：Class 100,000
Workshop anti-static grade：Level 1
Components service
Turnkey：PCBMASTER supply parts
Kitted or Consigned：Customer supply parts
Combo：Customer supply some parts we do the rest
Minimum order quantity
MOQ（Minimum Order Quantity）：1 SET
PCB thickness：Mass Production less than 4mm（No thickness limitation for samples.）
SMT Stencil
Laser cutting process
Max size：736mm×1500mm
Physical Factory
The production process is strictly controlled. The factory has a chemical and physical laboratory and implements strict process inspection.
Precision Six-Axis Drilling Machine
DVCP Vertical Electroplating Line
Fully Auto LDI In-line Exposer
Auto In-line Solder Mask Screen Printer
Fully Auto LDI In-line Solder Mask Exposer
Precision Six Axis Routing Machine
Fully Automatic AVI (Automatic Visual Inspection) Machine
Physical Laboratory
Quality Certifications
PCB products manufactured by PCBMASTER strictly adhere to international quality certification systems and undergo multiple quality inspections to ensure the stability and quality of each layer of the circuit.
IATF 16949
ISO 9001
UL Certification
RoHS certification
Our Partners
Cooperative Logistics
For large-volume orders with PCBMASTER, you may choose shipping methods such as air freight, sea-air combined transport, or sea freight as needed.
Please contact your sales representative for logistics solutions.
We will expand our shipping options in the future based on your needs.
