PCBMASTER

PCB & PCBA manufacturing factory

Provide one-stop services for global PCB design & PCB manufacturing & PCB assembly & components sourcing.

PCB Design
Quick turn PCB Prototype
PCB Assembly
Components Sourcing
Mass Production PCB
Mass Production PCB Assembly

Why choose PCBMASTER?

6 Advantages.

High-quality assurance

PCBMASTER is 100% responsible for the quality of its products. Fully compliant with ISO 9001/ IATF 16949 quality management system and UL certified. All boards are fully tested before shipment.
24H Online Service

Professional engineers one-on-one full service, from design to finished product delivery and after-sales, to provide you with a full range of one-stop technical support and solutions, to ensure the smooth progress of the project, the whole process is worry-free.
Free document checking

All of your orders will receive a free engineering file review service from our professional technicians. Ensure its manufacturability, PCB performance and cost-effectiveness, timely point out potential problems and provide optimization suggestions to help you optimize the design, reduce costs, shorten production cycle time, and ensure that the project advances efficiently.
Never inflate costs

Efficient and convenient instant online quotation system. PCBMASTER price structure at a glance, transparent and clear, never add any hidden costs, you will know where your cost is spent.
On-time delivery

We ensure your peace of mind with a 99% on-time delivery rate, guaranteeing that your products arrive on time or even ahead of schedule. Whether via DHL or other courier services, our flexible logistics solutions help you easily balance speed and budget, giving you more freedom in your choices.
Flexible Payment Methods

We provide payment options for order fees, including PayPal, credit cards, and bank transfers. While ensuring maximum flexibility, we also guarantee the security of your payments and the quality of our products.

We own 6 self-owned one-stop factories for PCB manufacturing & PCB assembly.

We have 6 self-owned one-stop factories with highly automated PCB & PCBA production lines running 24hours/7days, offering comprehensive and diversified PCB/PCBA products, strong order processing capability, and extreme cost control to fully meet customer needs.

Professional engineering and service team, strict delivery process, guaranteed quality.

We have an engineering and service team with an average of over 15 years of experience in PCB R&D and manufacturing, supported by professional engineers providing full-process tracking services. From customer demand communication and solution design, to technical guidance and problem-solving during production, to post-delivery after-sales technical support, we offer customers comprehensive one-stop solutions.

Comprehensive & Diversified PCB Manufacturing Capabilities

PCBMASTER is deeply cultivated in the PCB industry and has cumulatively served tens of thousands of enterprises around the world, covering a wide range of fields such as consumer electronics, communication equipment, industrial control, automotive electronics, medical equipment. We have accumulated rich experience in product application and customer service.

1-4L quick ture PCB Prototype

50,000 items/M
High Frequency PCB

30,000 ㎡/M
Rigid-Flex PCB

100,000 ㎡/M
HDI (Buried/blind vias) PCB

50,000 ㎡/M
FPC (Flexible Printed Circuit)

6,000-10,000 ㎡/M
Metal core PCB

20,000 ㎡/M

5.After strict screening, PCB boards are all sourced from world-renowned manufacturers such as SY-TECH, Panasonic, ROGERS, VENTEC, BERGQUIST, Laird, Taconic, Isola, Nelco, ARLON, ITEQ, etc. We stock 1200 specifications of PCB boards, covering FR-4, high-frequency & high-speed, aluminum-based, ceramic-based types and more.

Products type	Materials type	Min track/spacing	Process capability
FR4	TG140/150/170 / Halogen-free FR-4	2.0/2.0mil	≦64Layers / HDI Any-Layers
FPC	FPC / HDI FPC / Transparent FPC	2.0/2.0mil	≦20Layers / HDI 1-3 Layers
Rigid-Flex Board	Impedance-controlled / Tab-routed / Hollowed Rigid-Flex PCB	2.0/2.0mil	≦30Layers / HDI: 1-3 Layers
High-frequency PCB/RF PCB	ROGERS、AGC、SY、Wangling、Zhongying 、	3.0/3.0mil	≦24Layers/DK2.2-30
High-speed PCB	TUC、EMC、SY、ITEQ、ISOLA、Panasonic、AGC	2.0/2.0mil	≦36Layers/Impedance/Blind/Buried Vias/Hybrid Press/Depth-Controlled Blind Slot/Pad-on-Via Filled/N+N Lamination/Backdrilling
Ceramic core PCB	Alumina(AI203)、Aluminum nitride(AIN)、Silicon nitride(Si3N4)、Sapphire base	2.0/2.0mil	1-4Layers / DPC、DBC、LTCC
Metal core PCB	Aluminum/Copper/Iron core、High Thermal Conductivity Metal core/Ultra-Thermally Conductive Metal core/Sandwich Metal core/Hybrid-Pressed Metal core(SY/Boyu/Qingxi/Bergquist/DENKA)	3.0/3.0mil	1-8Layers / Thermal conductivity 1-385W/m·K
Mini LED PCB	miniLED PCB(P＞1.2) 、Transparent screen miniLED light board、Small-pitch LED light board	2.0/2.0mil	>=P1.20/HDI: 1-4Layers
IC substrate PCB	Process technology: MSAP、ETS、SAP、ABF	1.0/1.0mil	2-12 Layers/HDI Any-layers/ Thickness: 0.10-1.20mm/ Min mechanical drill: 0.10mm/Min laser drill 0.05mm
Special PCB	Hybrid-Pressed PCB、Stepped PCB、Semiconductor Test Board、Transparent Substrate	3.0/3.0mil	High-Frequency High-Speed Hybrid Lamination/Metal Core Hybrid Lamination/Various Stepped PCBs/High-Frequency Transparent Materials

Daily production capacity

PCB assembly SMT：12 million points per day

PCB assembly DIP： 500000 points per day
PCB assembly size

PCB single size ＜45mm×45mm.The PCB need combo

Max size：400mm×1200mm
PCB assembly service type

SMT: Surface Mount Technology

DIP：Through-Hole Technology
Supported PCB types

Rigid PCB（FR-4/Ceramic/High-frequency/high-speed PCB）

FPC（Flexible Printed Circuit）/ Rigid-Flex PCB

Metal Base/Metal core
Min component spacing

Conventional min size：0.3mm

Limit min size：0.2mm
Min Components footprint

Conventional footprint 0201

Limit footprint 01005
AOI inspection capability

Conventional min CHIP size： 0201

Conventional min IC pitch：0.3mm

Limit min CHIP size: 01005

Limit min IC pitch：0.3mm
X-RAY inspection capability

PCBA solder joint inspection

Components inspection (BGA, CSP, POP, etc.)
Workshop Level

Workshop dust-free grade：Class 100,000

Workshop anti-static grade：Level 1
Components service

Turnkey：PCBMASTER supply parts

Kitted or Consigned：Customer supply parts

Combo：Customer supply some parts we do the rest
Minimum order quantity

MOQ（Minimum Order Quantity）：1 SET

PCB thickness：Mass Production less than 4mm（No thickness limitation for samples.）
SMT Stencil

Laser cutting process

Max size：736mm×1500mm

Physical Factory

The production process is strictly controlled. The factory has a chemical and physical laboratory and implements strict process inspection.

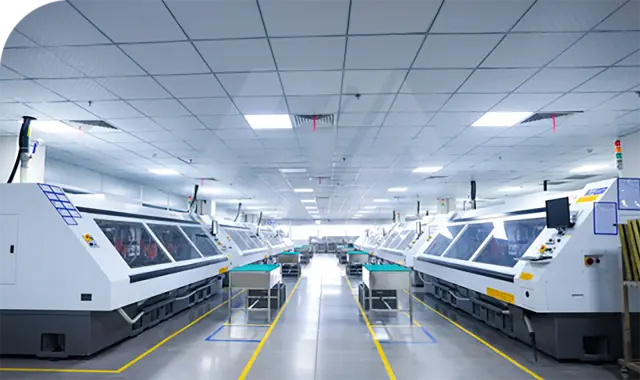

PCB Factory
PCB Assembly Factory
PCBMASTER Team

Precision Six-Axis Drilling Machine
DVCP Vertical Electroplating Line
Fully Auto LDI In-line Exposer
Auto In-line Solder Mask Screen Printer
Fully Auto LDI In-line Solder Mask Exposer
Precision Six Axis Routing Machine
Fully Automatic AVI (Automatic Visual Inspection) Machine
Physical Laboratory

Yamaha SMT Placement Machine
10-Zone Reflow Soldering Oven
Intelligent AOI
Selective Wave Soldering Machine
DIP Post-Soldering
Detailed diagram of selective wave soldering
DIP detail
Solder paste printing

Quality Certifications

PCB products manufactured by PCBMASTER strictly adhere to international quality certification systems and undergo multiple quality inspections to ensure the stability and quality of each layer of the circuit.
